Kimera Serial (Box version): Industrial fanless PC , CPU Celeron, 2x Lan, 2x Video Output, 2x Serial RS-232/422/485

  • Fanless design
  • Double video output
  • Dual Lan
  • 2 Seriali: 1x RS-232 + 1x RS-232/422/485
Cod: RSC-7C1

Additional information

CPU

Intel Celeron Dual Core J4005, 2x 2.00GHz, 4MB Cache

RAM

2 x DDR4 SO-DIMM fino 32 GB

Storage

M.2 SSD Sata

LAN

Dual Lan 10/100/1000 Mb/s

Wifi

Optional

Audio

2x Jack Audio

Graphics

Intel® UHD 600 12EUs; max. 8GB 250MHz / 700MHz

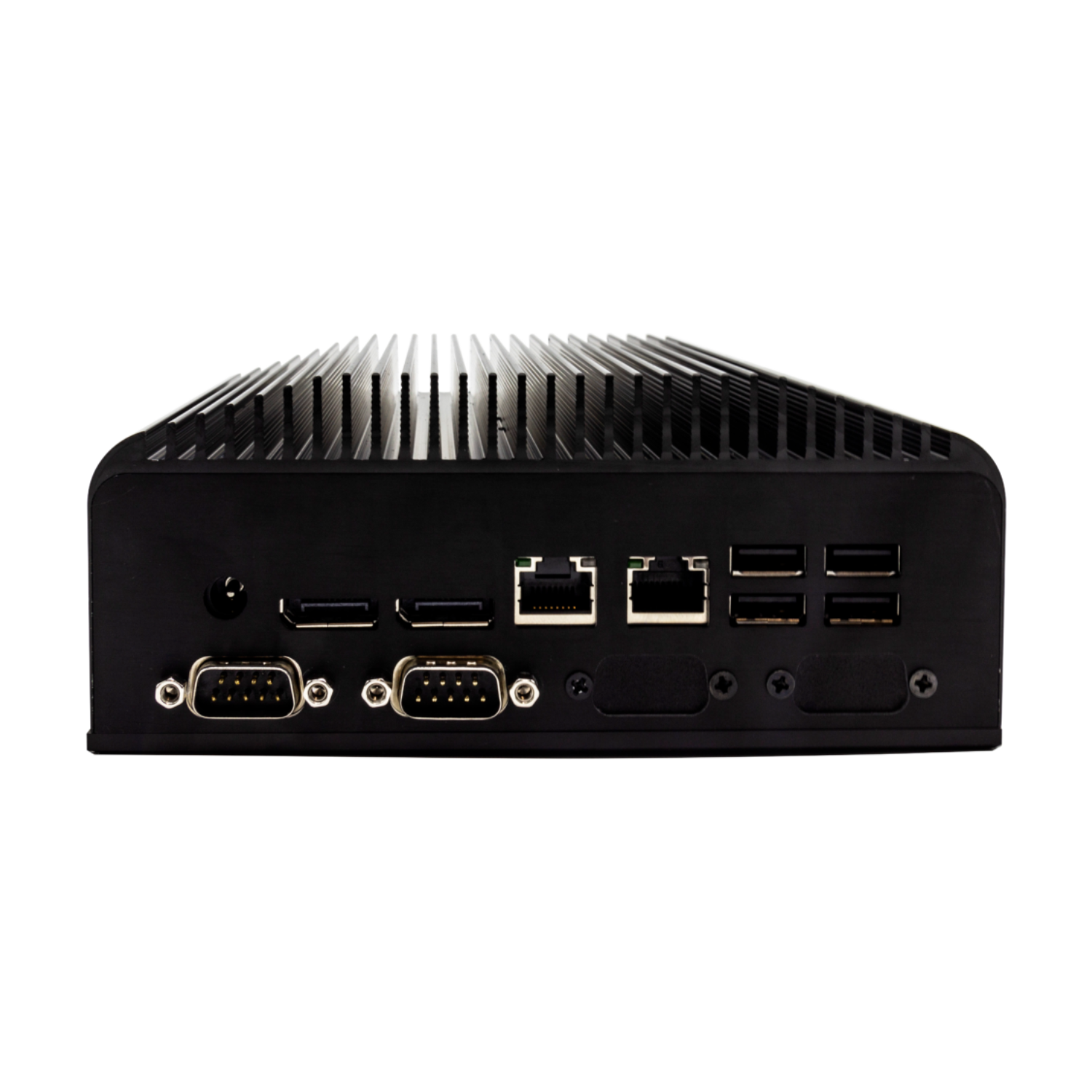

External Connectors

2x USB 3.0 (front)
2x Display Port
4x USB 2.0
2x Gb LAN
1x Serial RS-232
1x Serial RS-232/422/485
1x DC In Power Supply

Power

8-24V DC-In @5A max

Dimensions

200,4 x 154,6 x 34,2 mm

Technical documentation

Datasheet
Instruction Manual
Download
