Kimera Serial: Industrial Fanless PC, CPU Celeron, Serial RS-232, dual Lan, dual Hdmi video

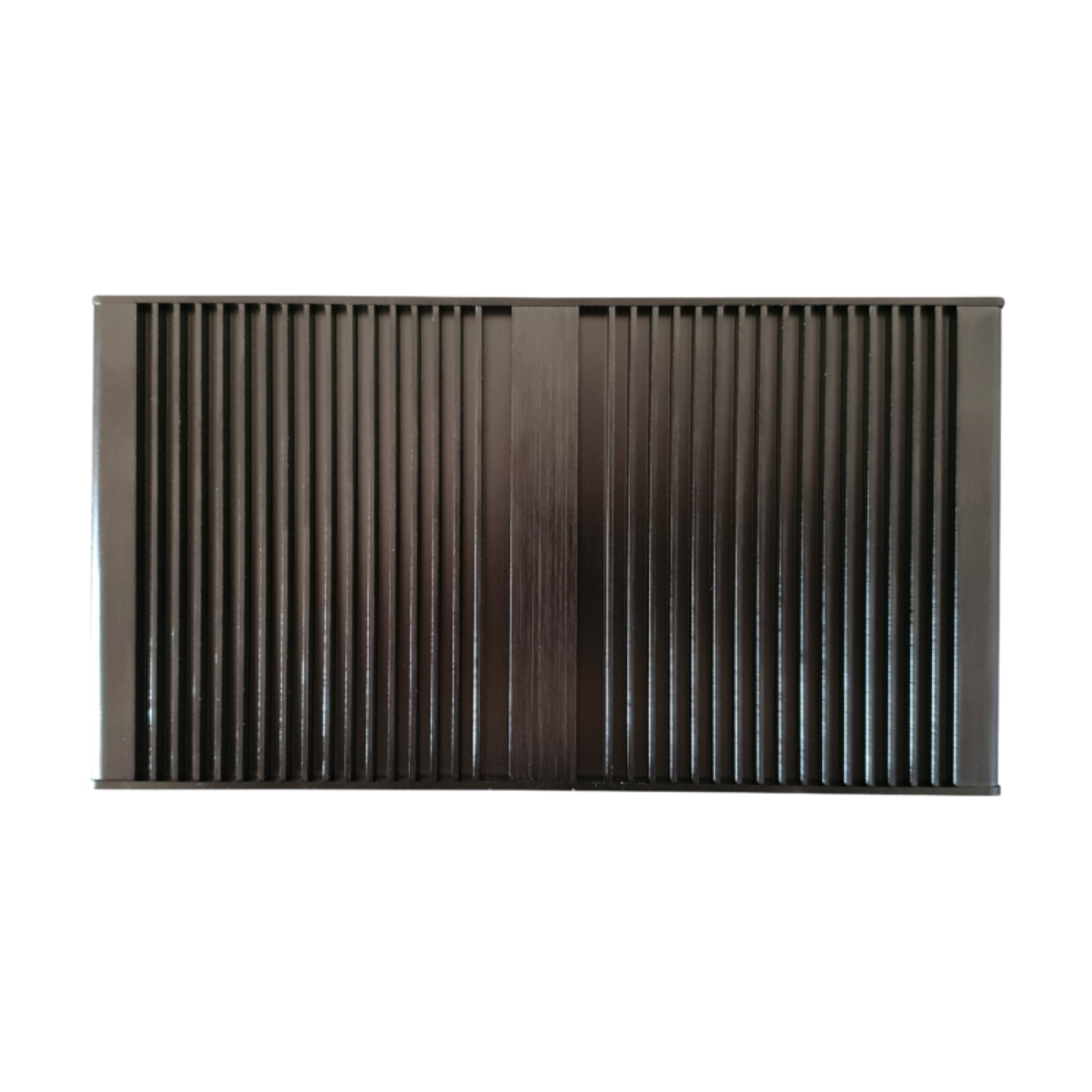

  • Aluminium fanless design
  • Dual Lan (second Lan optional)
  • Dual Hdmi port
  • Serial RS – 232
Cod: RSS – 8C

Additional information

CPU

Intel® Celeron® Processor N3350
(2M Cache, up to 2,4 GHz)

RAM

2 x LPDDR3 up to 4GB

Storage

64 GB eMMC integrated + storage support SSD M.2

LAN

Dual Intel® i211-AT 10/100/1000 Mbps Ethernet

Graphics

Intel® HD Graphics 500

External Connectors

Front:
1x USB 3.0
2x USB 2.0
1x COM

Rear:
2x HDMI
1x USB 3.0
2x USB 2.0
2x Gb LAN
1x Audio Jack

Wifi

Optional

Power

12V~24V DC

Dimensions

200.4 x 108.5 x 34.5 mm

Technical documentation

Datasheet
Instruction Manual
Download
