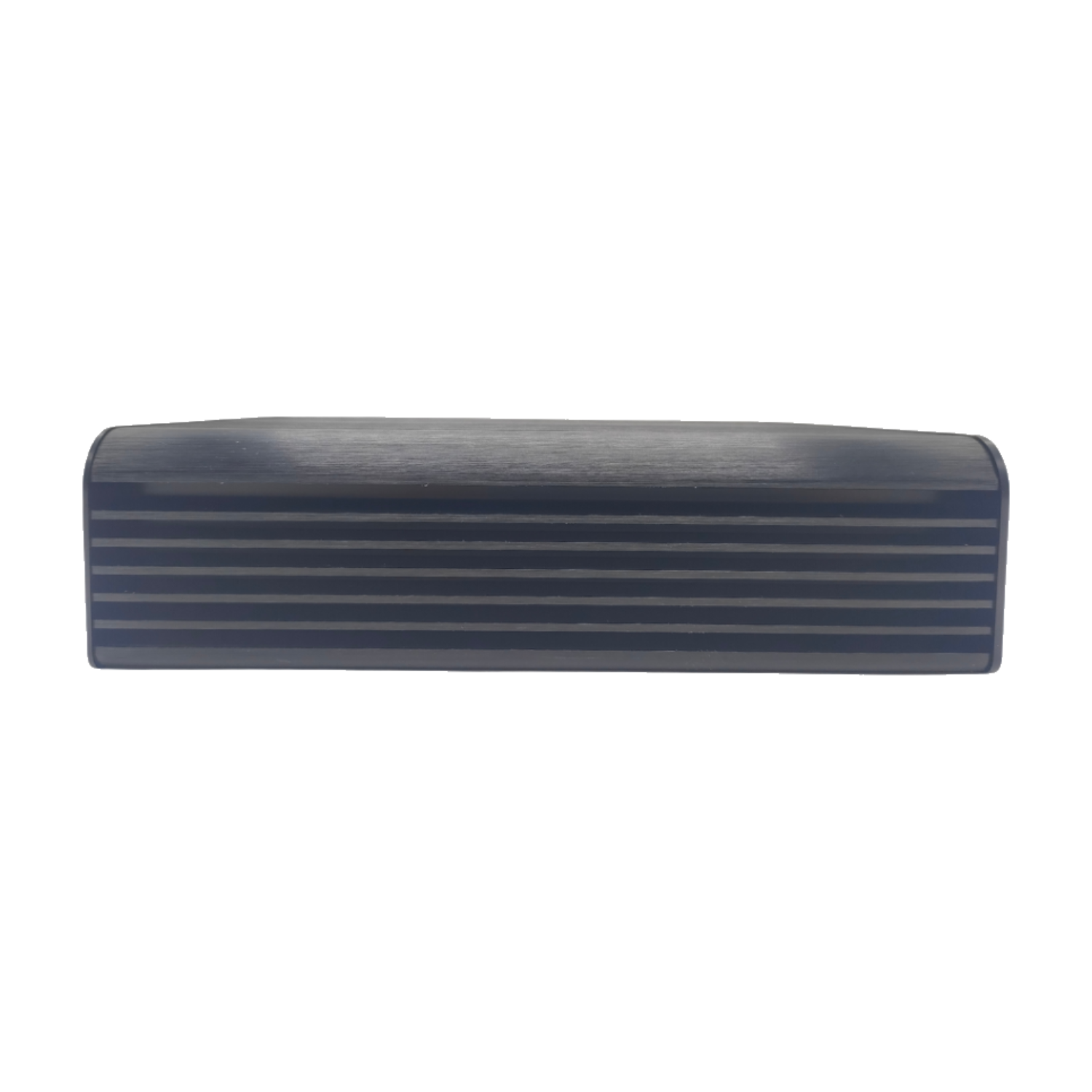

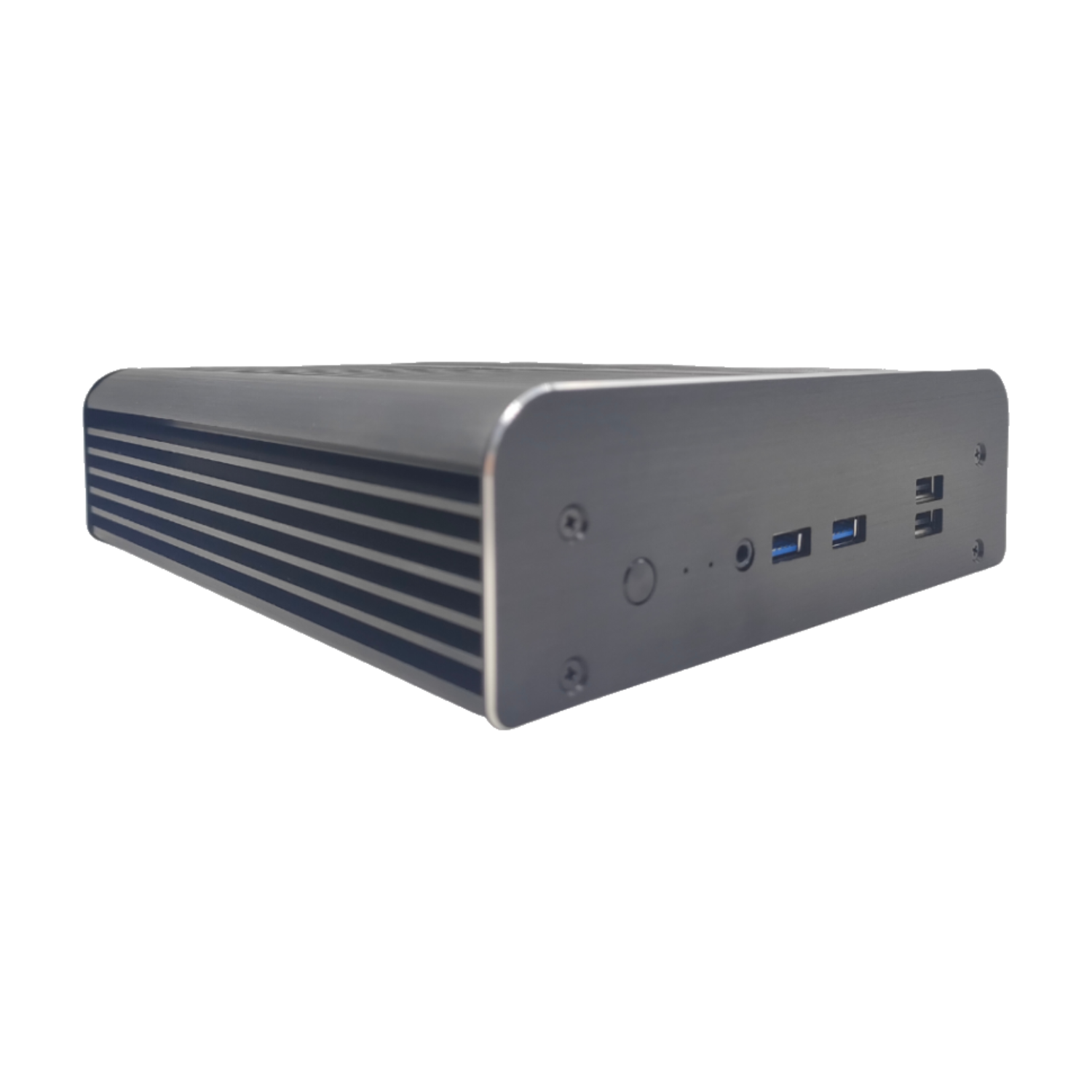

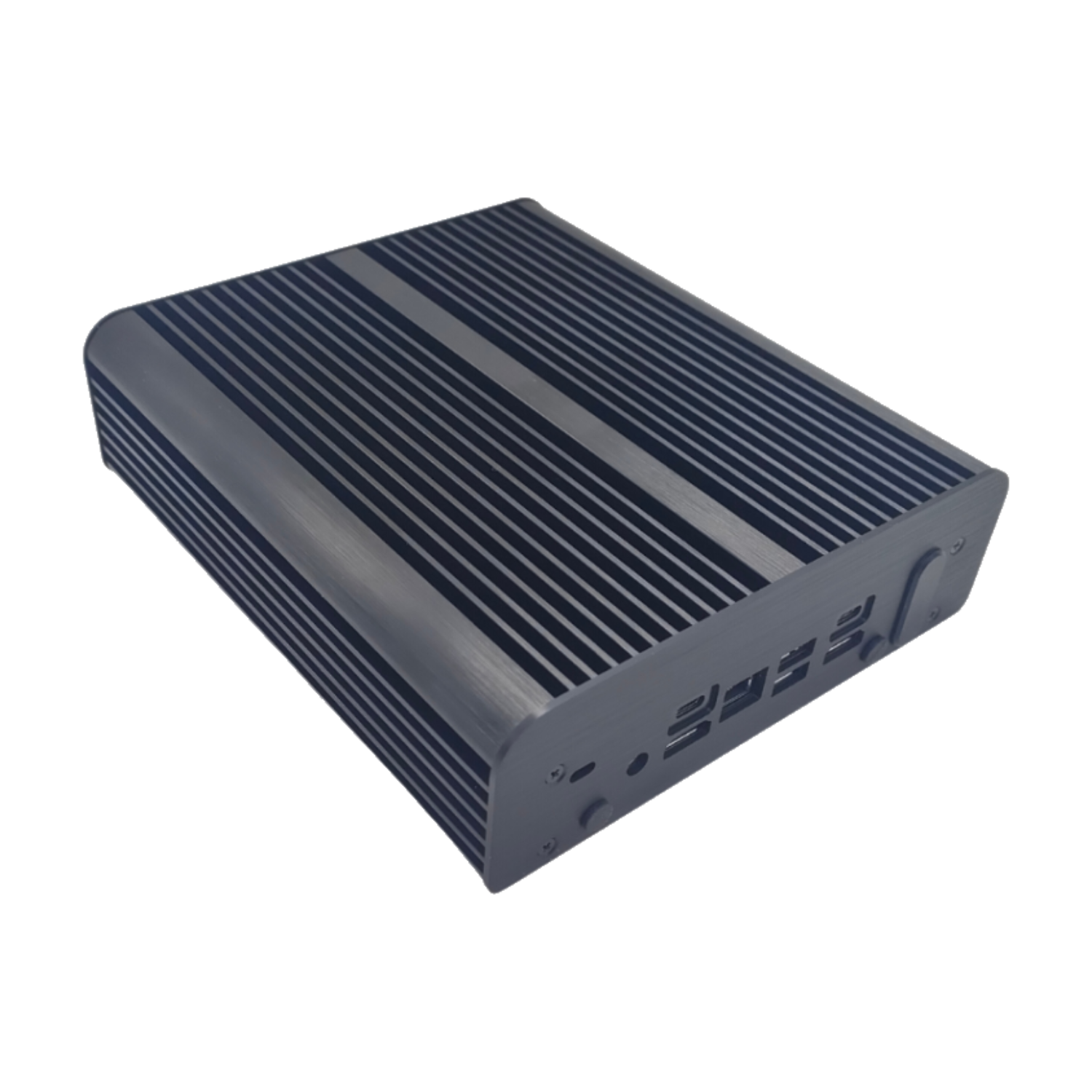

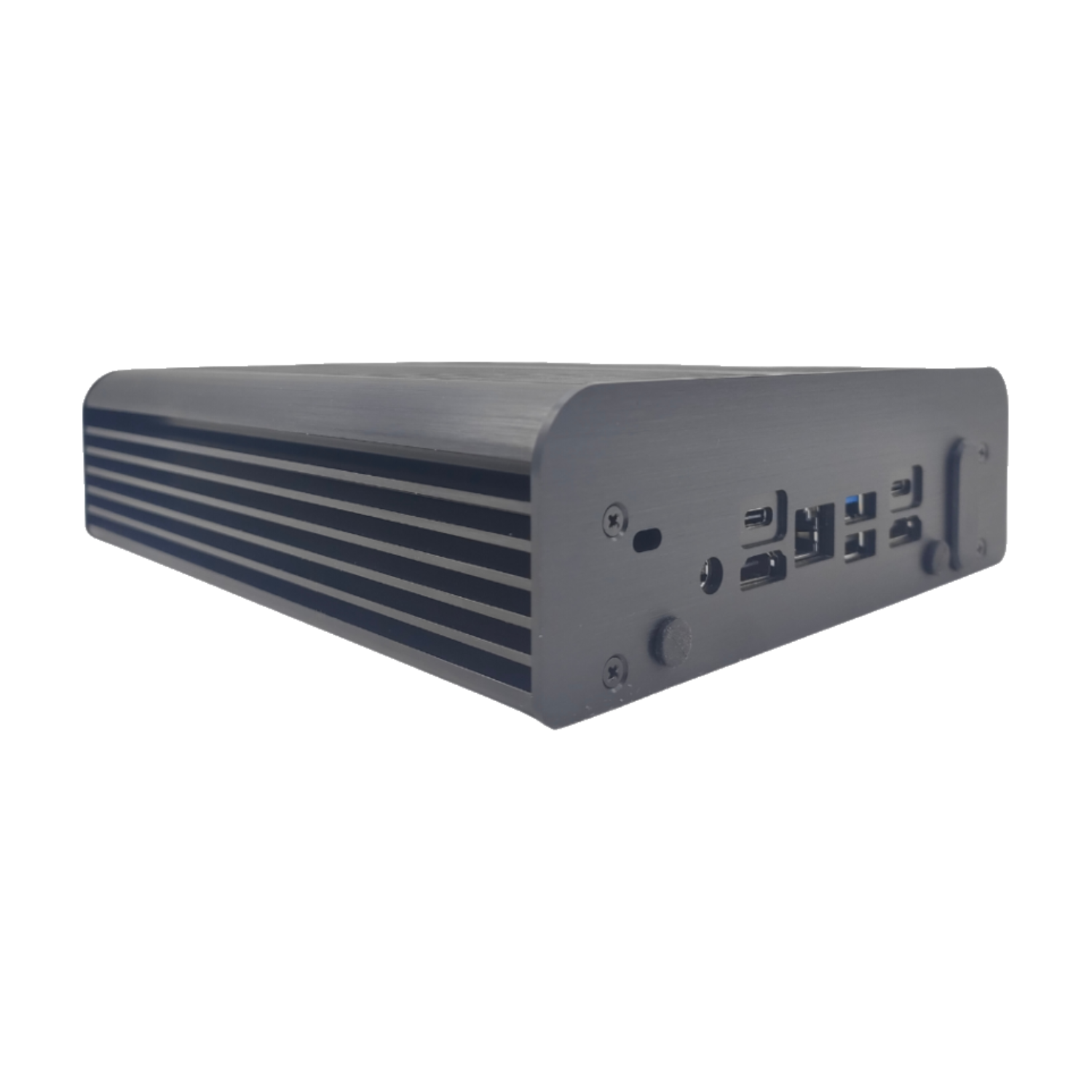

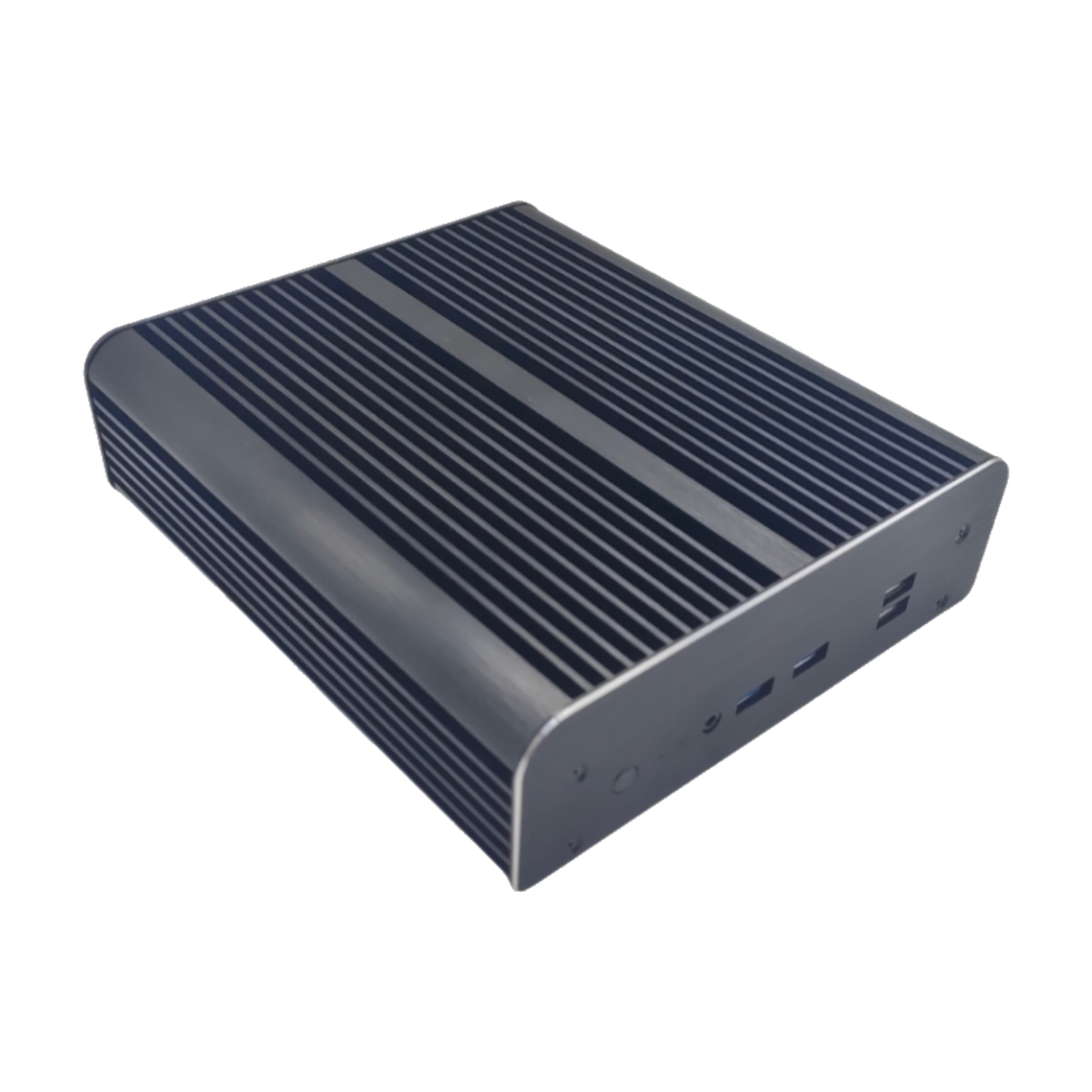

Kimera Pro 4.0 (Box Version): lüfterloser Industrie-PC, i3 / i5 / i7 CPU, Thunderbolt, RS-232

  • Aluminium fanless design
  • Quad video out (2x HDMI + 2x Type C)
  • 1 x conector Audio
  • 2 x Thunderbolt
  • Intel Core i3, i5, i7 (13° Gen.)
Cod: PRC-13

Zusätzliche Informationen

CPU

Intel® Core™ i3-1315U (10M Cache, up to 4,50 GHz)
Intel® Core™ i5-1340P (12M Cache, up to 4,60 GHz)
Intel® Core™ i7-1360P (18M Cache, up to 5,00 GHz)

RAM

2 x DDR4 SO-DIMM up to 64 GB, 3200 MHz, dual channel

Storage

1x SSD / HDD 2,5" Sata, 2x M.2 NVMe PCIe SSD (NVMe RAID Support)

Lan

Intel® i225-LM 2.5 Gbps Ethernet

Wifi

Optional

Graphics

CPU i3: Integrated Intel® UHD Graphics, CPU i5/i7: Intel® Graphics Iris Xe

External Connectors

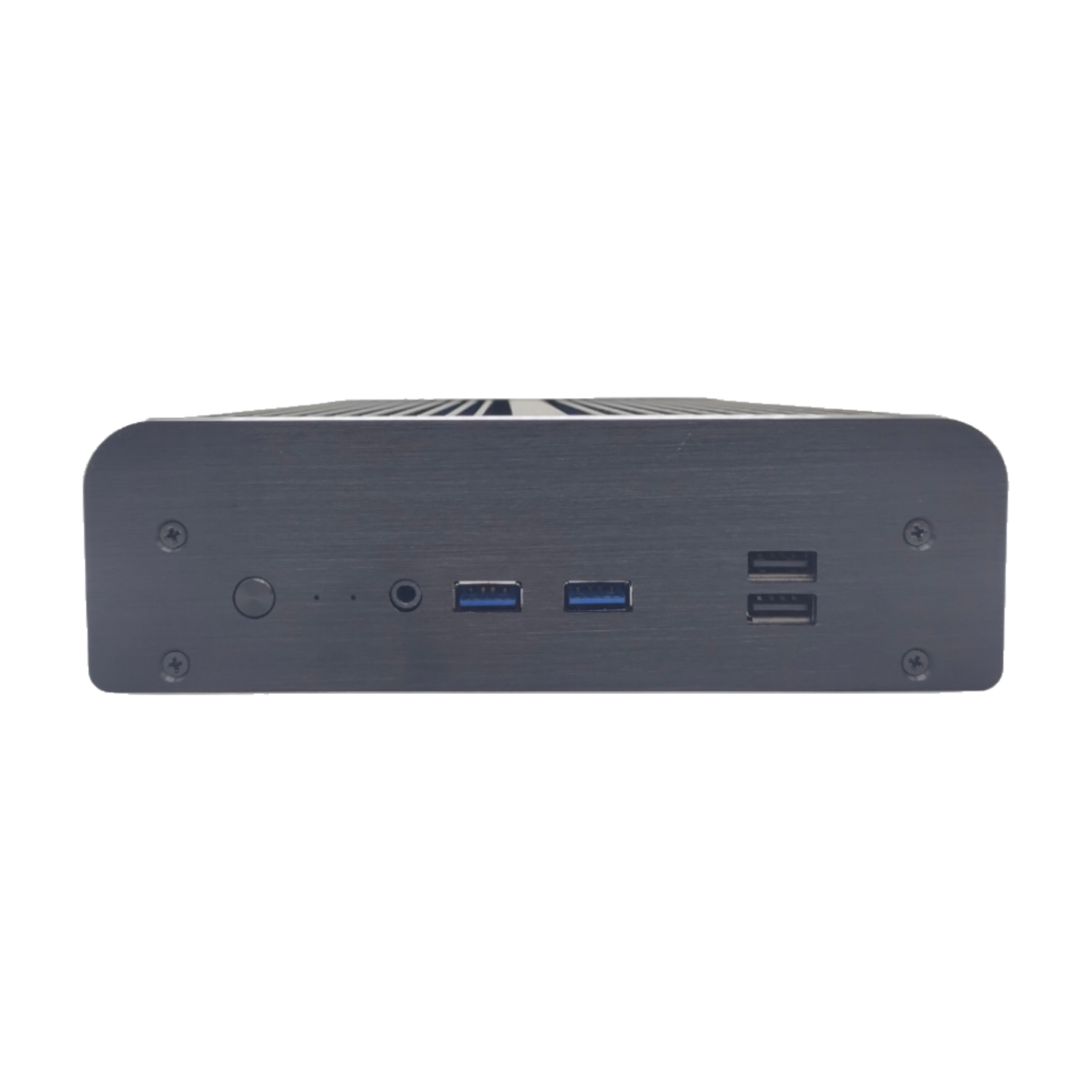

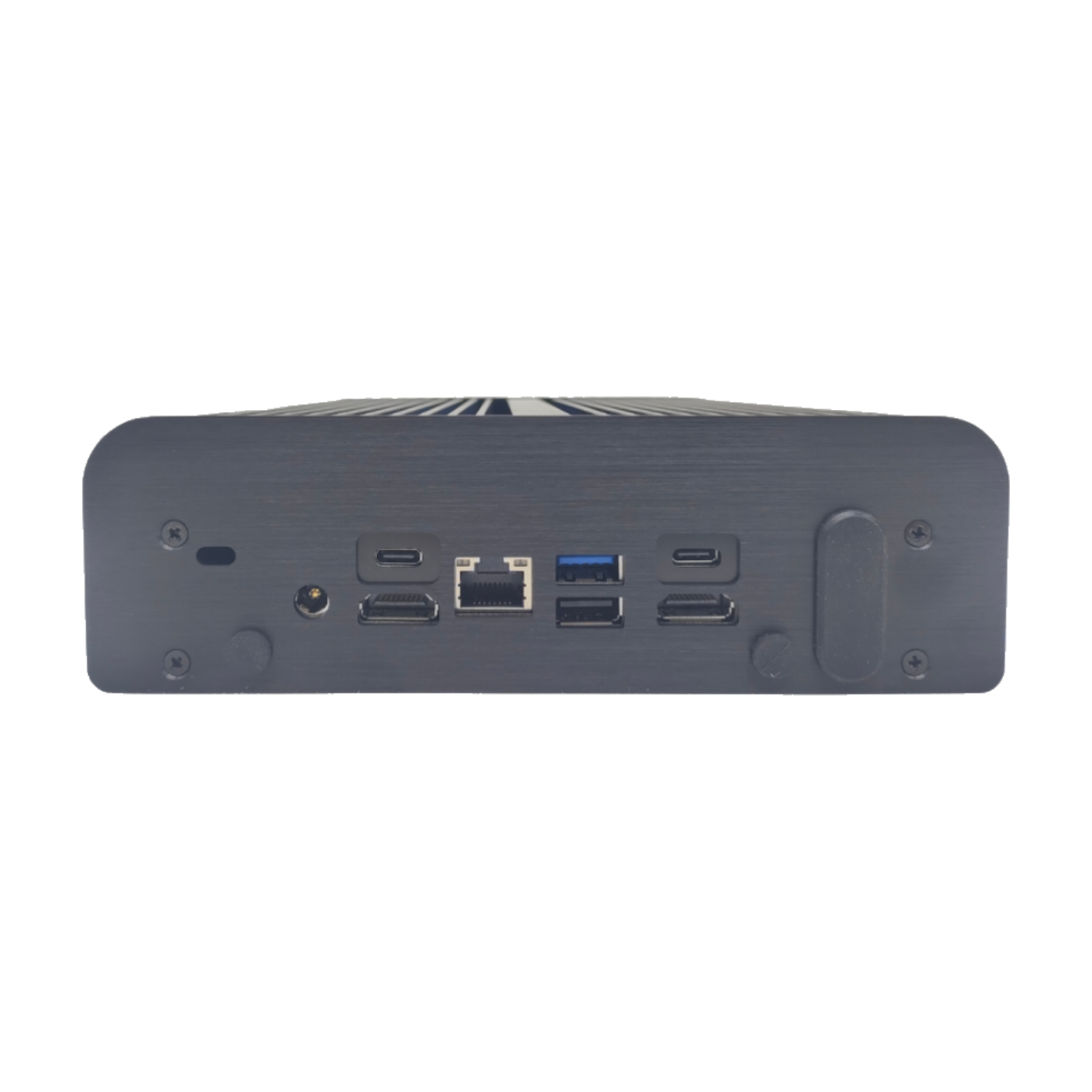

Front: 2x USB 3.0 2x USB 2.0 1x Jack Audio Rear 2x HDMI 2.0 1x USB 2.0 1x USB 3.0 1x 2.5 GbE LAN 2x Thunderbolt 4

Power

19V 120W DC-In

Dimensions

176,6 x 200 x 53,6 mm

Documentazione Tecnica

Datasheet
Download
Bedienungsanleitung
Download
