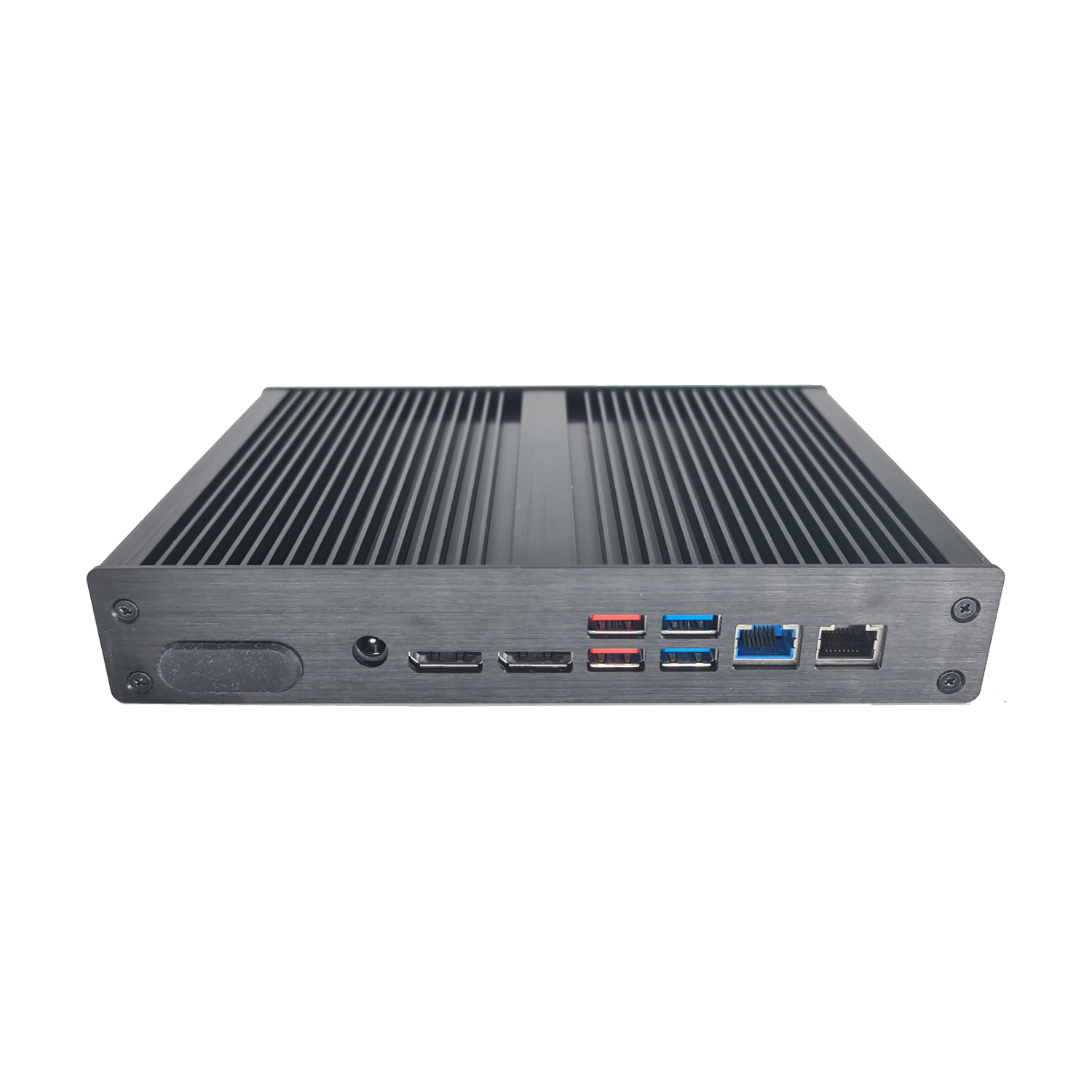

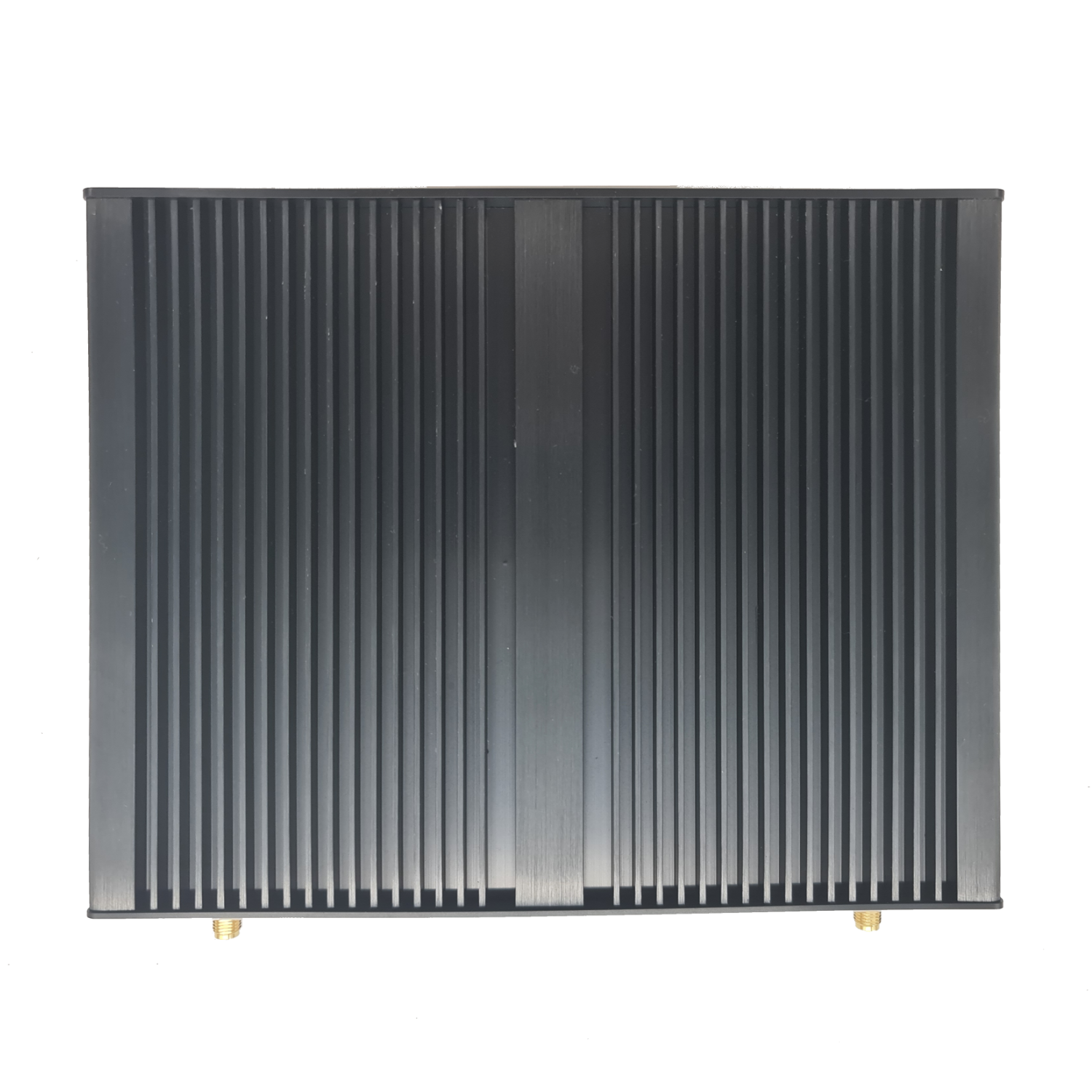

Kimera Serial (Slim version): lüfterloser Industrie-PC, Celeron / Pentium CPU, 2x LAN, 2x Videoausgabe, 1x serielle Schnittstelle RS-232 / 422 / 485

  • Fanless design
  • Double video output
  • Dual Lan
  • 1 Serial: 1x RS232/422/485
Cod: RSS-C

Additional information

CPU

Intel Celeron Dual Core J4105, 4 MB Cache, up to 2.50 GHz
Intel Pentium Quad Core J5005, 4 MB di cache up to 2,80 GHz

RAM

DDR4 SO-DIMM up to 32 Gb

Storage

M.2 SSD Sata

LAN

Dual Lan 10/100/1000 Mb/s

Wifi

Optional

Audio

2x Jack Audio

Graphics

Intel® UHD 600 12EUs; max. 8GB 250MHz / 700MHz

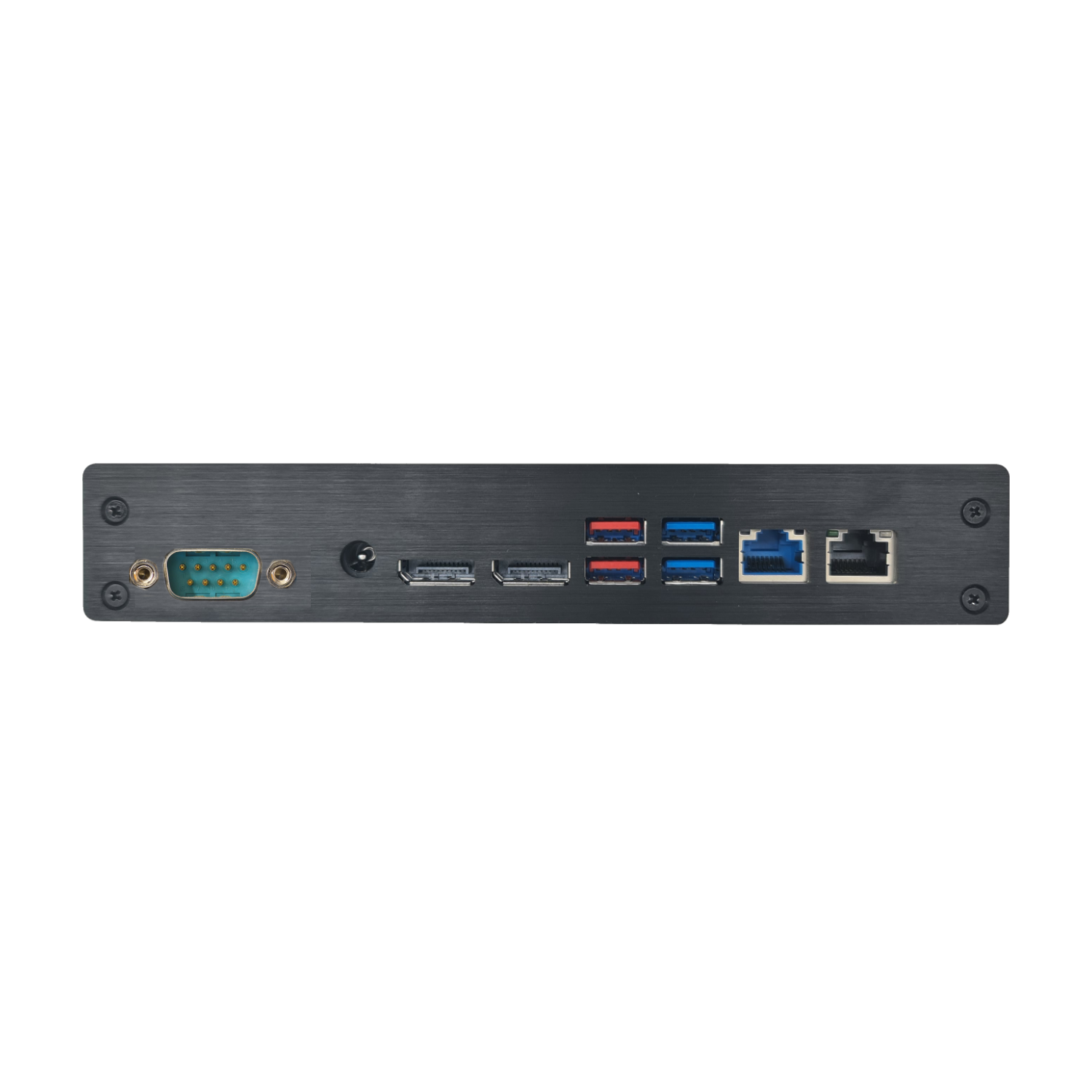

External connectors

2x USB 3.0 (front)
2x Display Port
4x USB 2.0
2x Gb LAN
1x Serial RS-232/422/485
1x DC In Power Supply

Power

8-24V DC-In @5A max

Dimensions

200,4 x 154,6 x 34,2 mm
