Kimera AI Workstation Rack: IPC 19″ 2U, CPU i7/i9 12/13/14th Gen., 1x GPU Nvidia RTX-Powered AI

  • Dimensions 2U for 19″ rack mounting
  • Possibility of adding an additional I/O board
  • 4x DisplayPort
  • All other connectors depend on the required configuration

Informacje dodatkowe

CPU

Intel® Core™ i9 / i7 12/13/14th Gen.

RAM

4x DDR5-4800 MHz DIMM slots up to 128 GB memory

Storage

2x M.2 SSD PCIe (NVMe RAID support) 4x 3,5" SATA HDD (RAID 0/1/5/10 supported)

LAN

1x RJ45 10/100/1000 Mbps 2x RJ45 10/100/1000/2500 Mbps

Graphics

Intel UHD Graphics, 1x Nvidia RTX-Powered AI supported

External Connectors

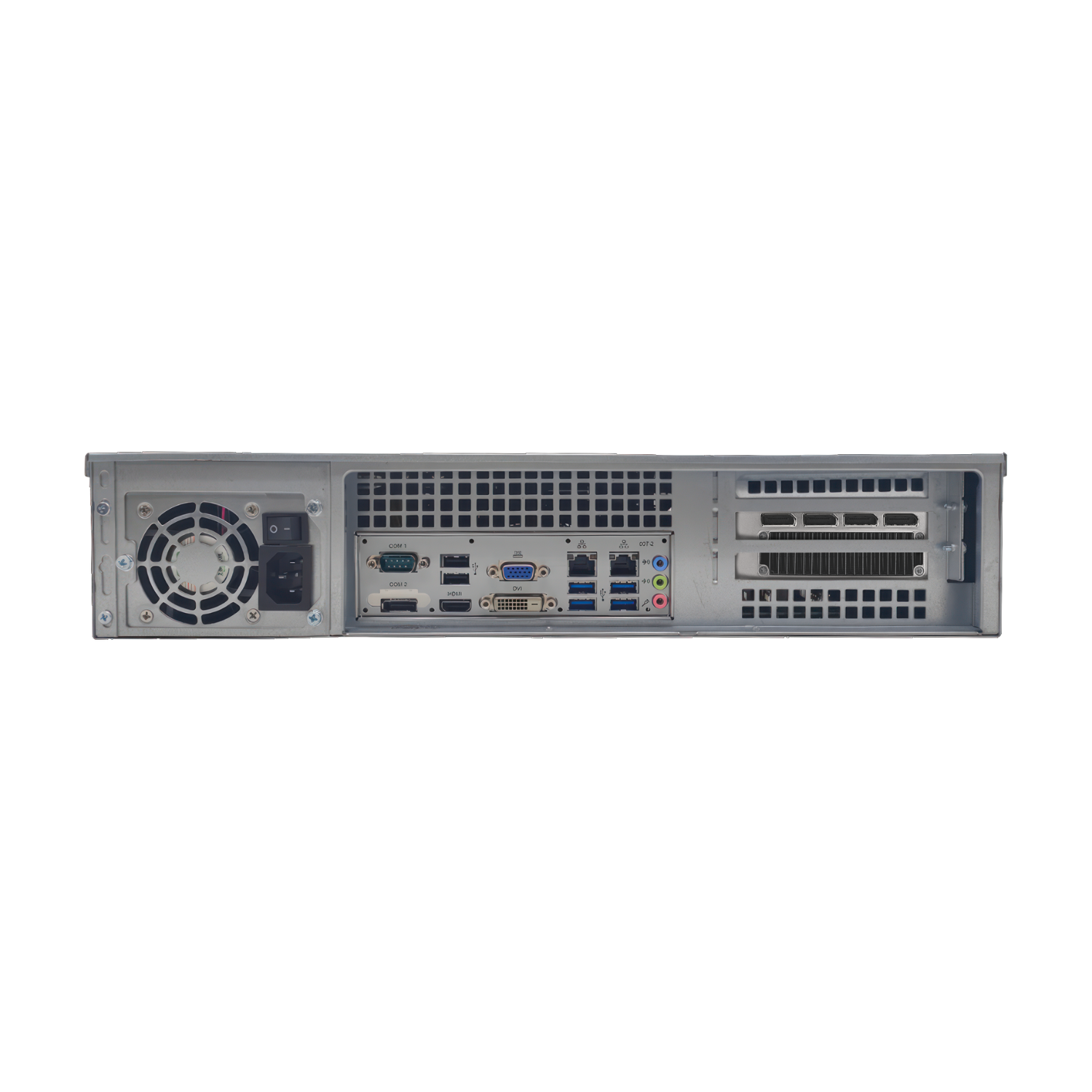

Front: 2x USB 3.0 Rear: 4x DisplayPort, 4x USB 3.2 Gen 1, 2x USB 3.2 Gen 2, 1x Type-C, 3x LAN, 1x COM, 3x Jack Audio

Dimensions

588 x 482 x 89 mm

OS

Support for Windows 10, Windows 11, Windows IoT, Linux-64

Options

All other connectors depend on the required configuration

Dokumentacja techniczna

Datasheet
Download
Instrukcja obsługi
Download
