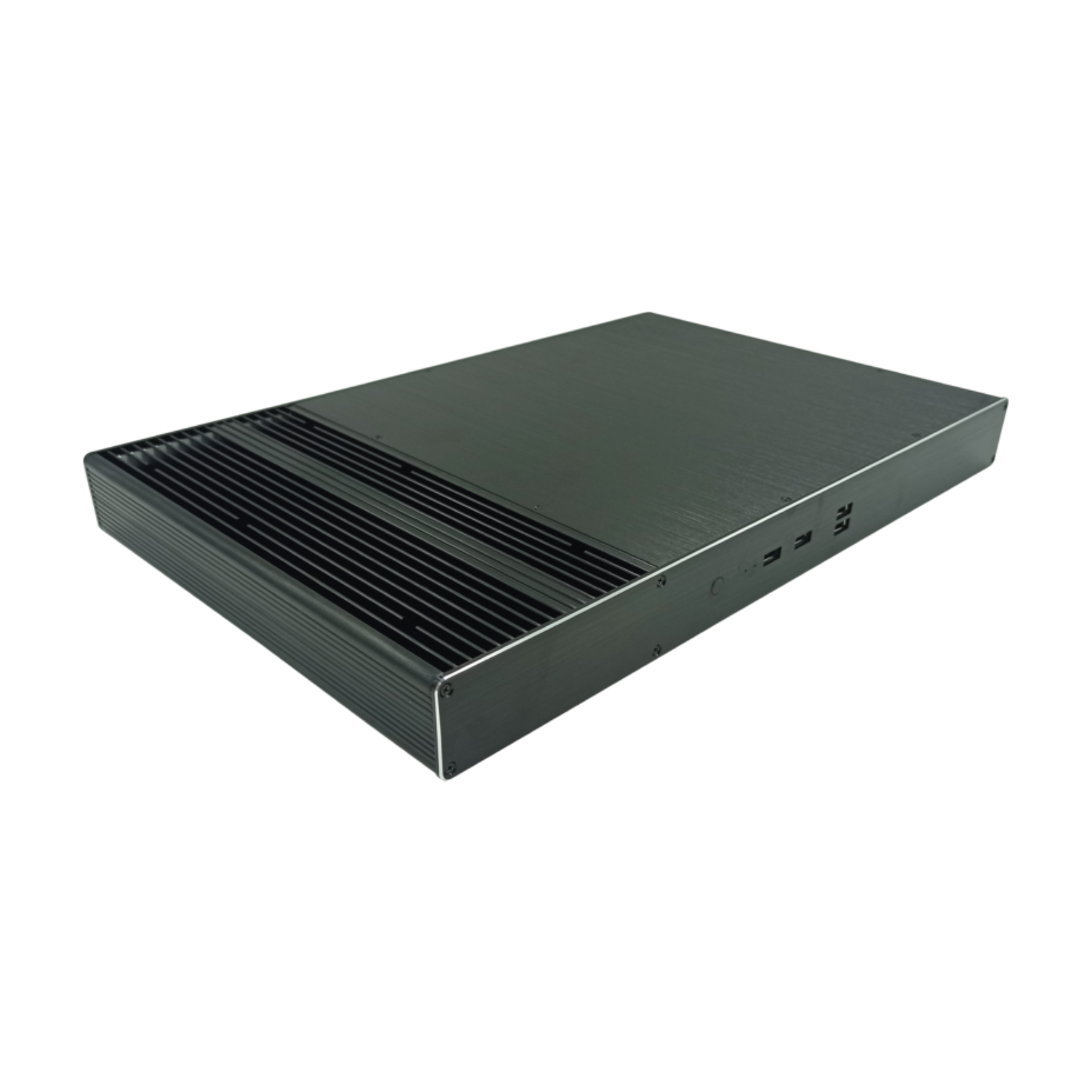

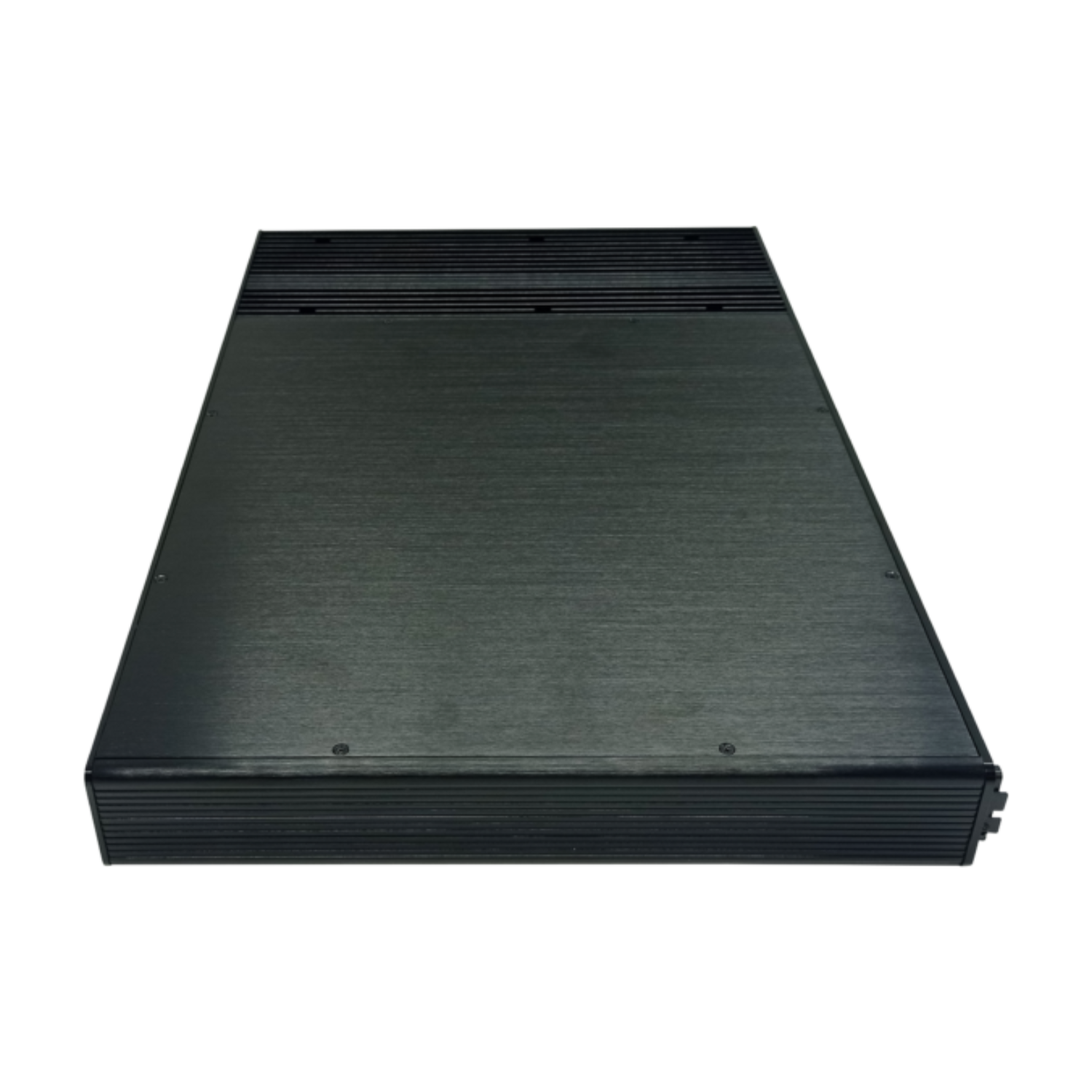

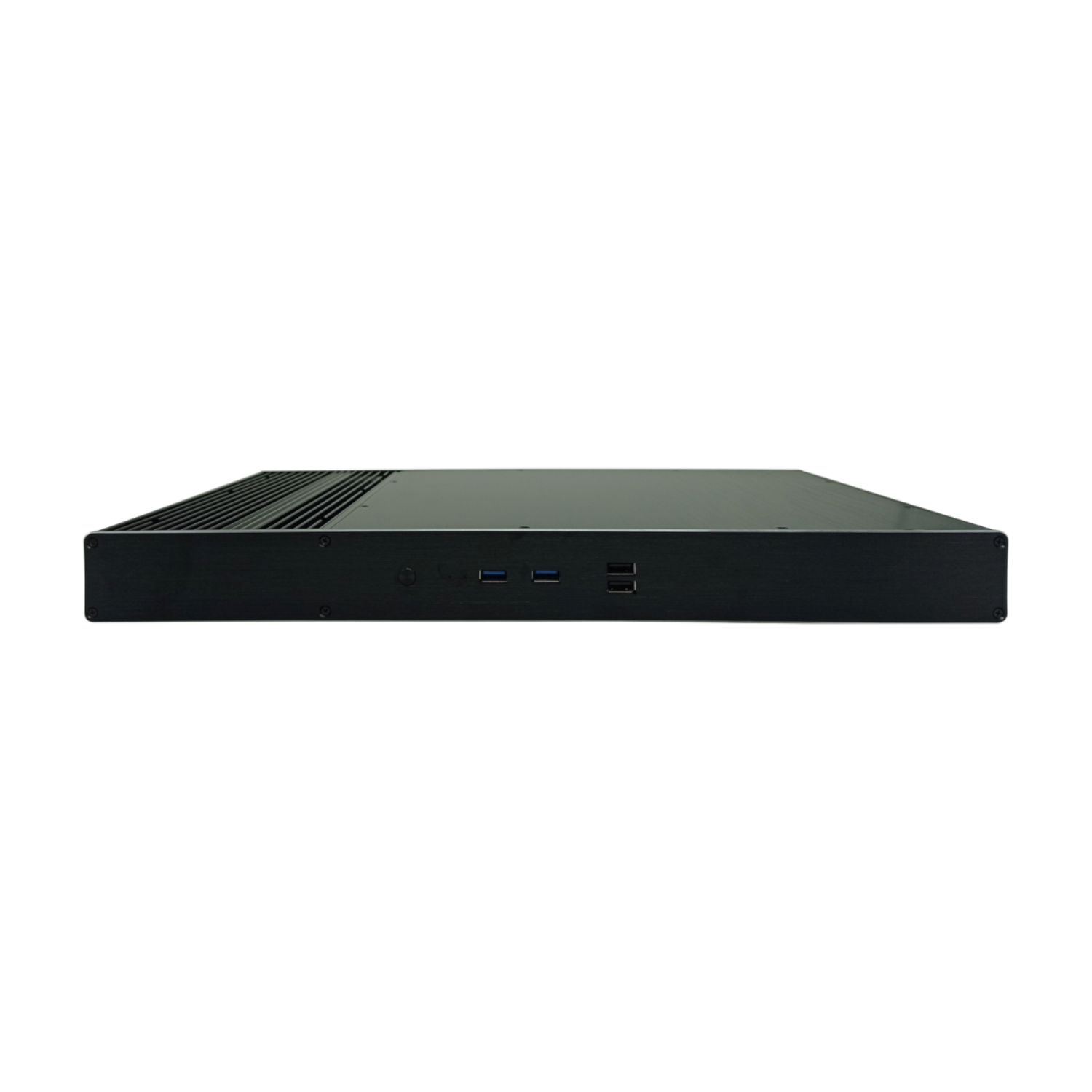

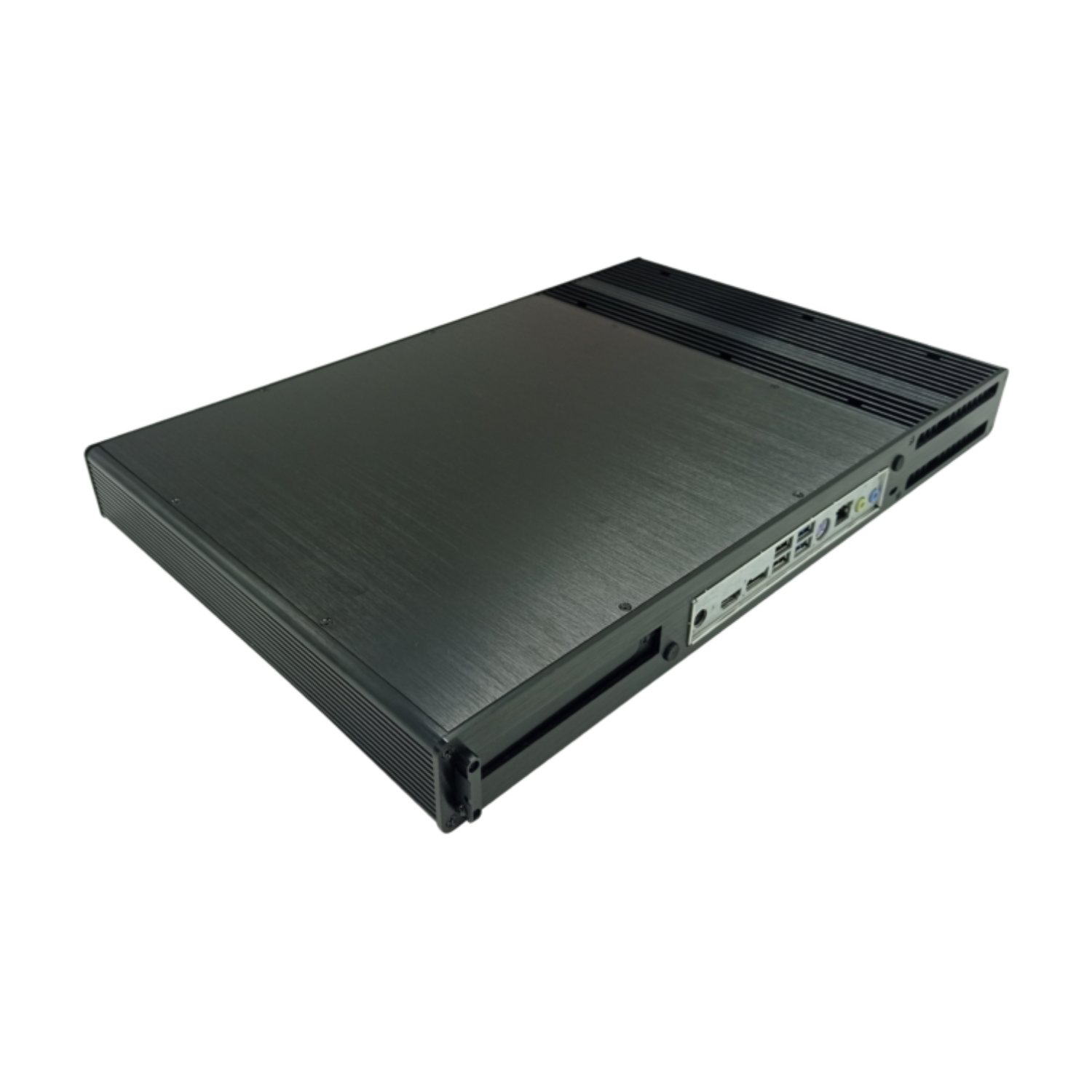

Kimera Flat: Ordenador Industrial fanless, CPU Celeron / Pentium / i3 / i5 / i7, soporte para PCI Express

  • 1U dimensions for desktop or VESA mounting
  • Possibility to add an extra I/O card
  • Totally fanless technology
Cod: FLS-8

Información adicional

CPU

Intel® Core™ i7 / i5 / i3, Intel® Pentium, Intel® Celeron – L3 cache
Supports 8th and 9th generation

RAM

2 x DDR4 SO-DIMM up to 32 GB, supports 2133/2400 MHz, dual-channel

Storage

Support up to 4x SSD / HDD 2,5″ Sata
mSata SSD (depending on the system)
M.2 SSD

LAN

1 x Intel® GbE LAN (10/100/1000)
2nd LAN optional

Graphics

x DisplayPort e 1x HDMI.
Additional outputs can be added on request

Expansion slots

1 x PCIe x 4 (Gen 3)
1 x Mini PCIe (optional)

External connectors

1 x PCI Express Slot
2 x USB 3.0 (frontal) + 2x USB 2.0 (frontal)
2 x antenna holes for wireless and bluetooth modules

Power

12/19-24V DC-In

Dimensions

430 x 278 x 43,6 mm

Documentación técnica

Datasheet
Download
Manual de instrucciones
Download
