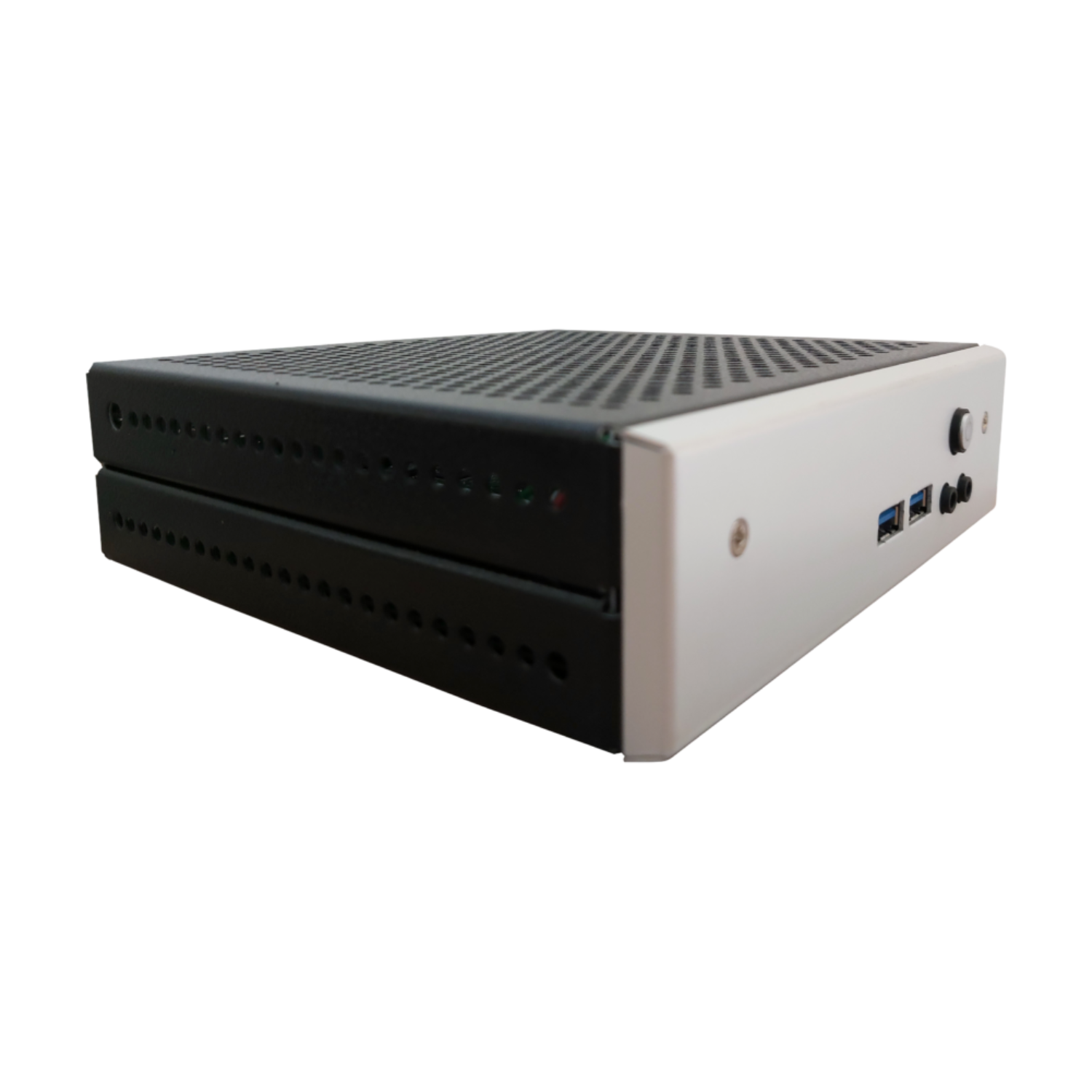

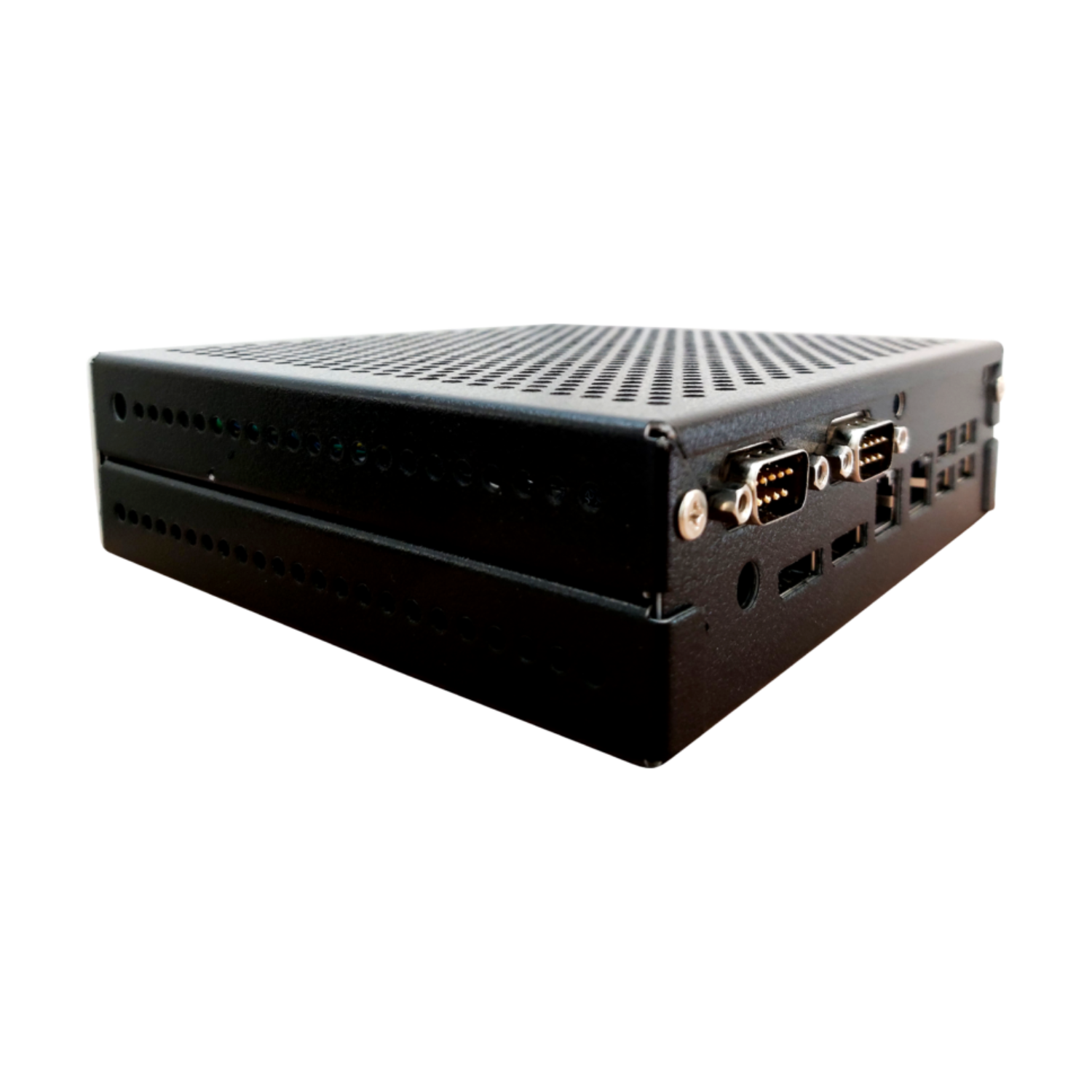

Kimera Serial: PC Industriale fanless, CPU Celeron, 2x Lan, 2x Video Output, 2x Serial RS-232/422/485

  • Fanless design
  • Double video output
  • Dual Lan
  • 2 Seriali: 1x RS-232 + 1x RS-232/422/485
Cod: RSS-7C2

Informazioni aggiuntive

CPU

Intel Celeron Dual Core J4005, 2x 2.00GHz, 4MB Cache

RAM

DDR4 SO-DIMM up to 32 Gb

Storage

M.2 SSD Sata

LAN

Dual Lan 10/100/1000 Mb/s

Wifi

Optional

Audio

2x Jack Audio

Graphics

Intel® UHD 600 12EUs; max. 8GB 250MHz / 700MHz

Connettori Esterni

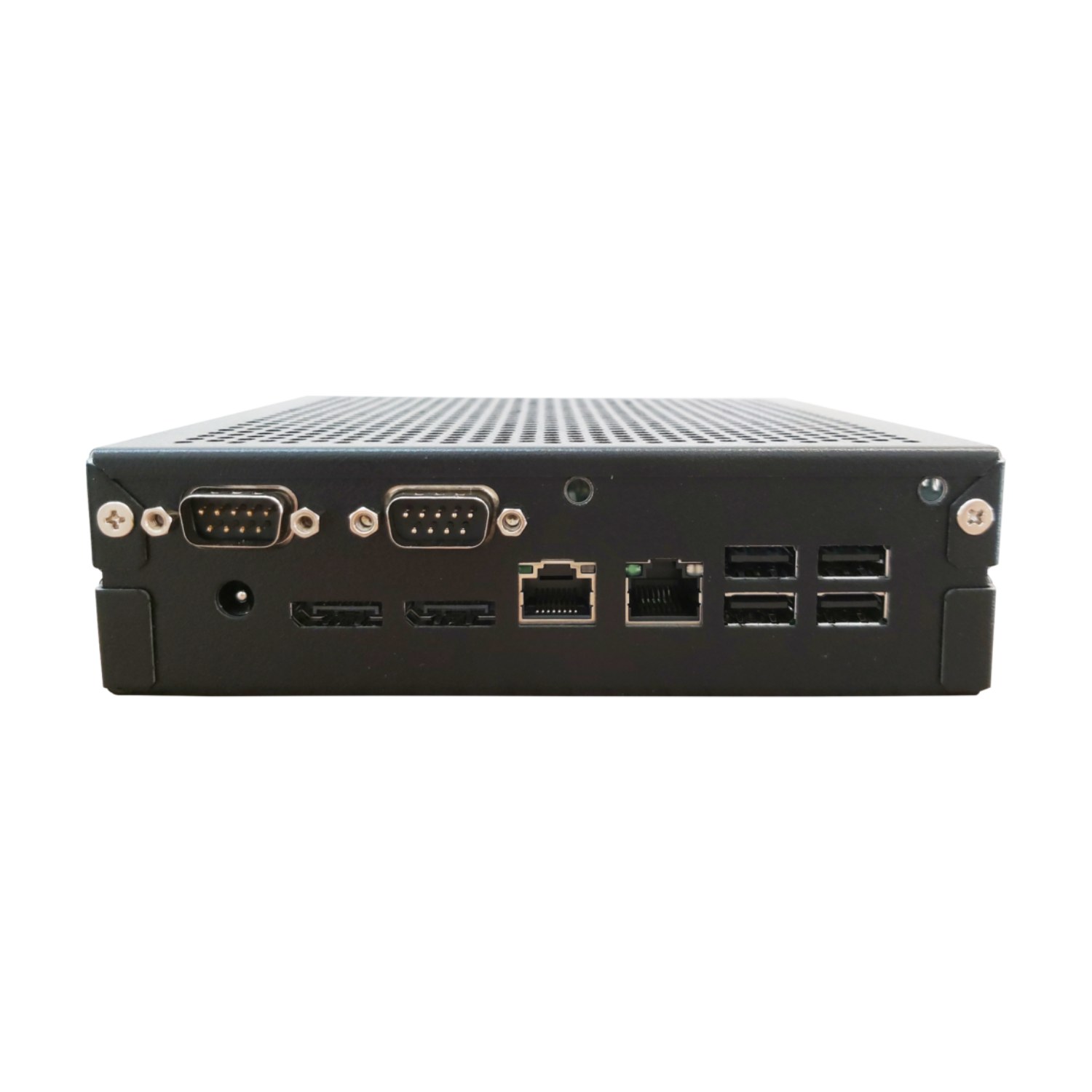

2x USB 3.0 (front) 2x Display Port 4x USB 2.0 2x Gb LAN 1x Serial RS-232 1x Serial RS-232/422/485 1x DC In Power Supply

Potenza

8-24V DC-In @5A max

Dimensioni

200,4 x 154,6 x 34,2 mm

Documentazione Tecnica

Datasheet
Download
Manuale
Download

Richiedi Informazioni
