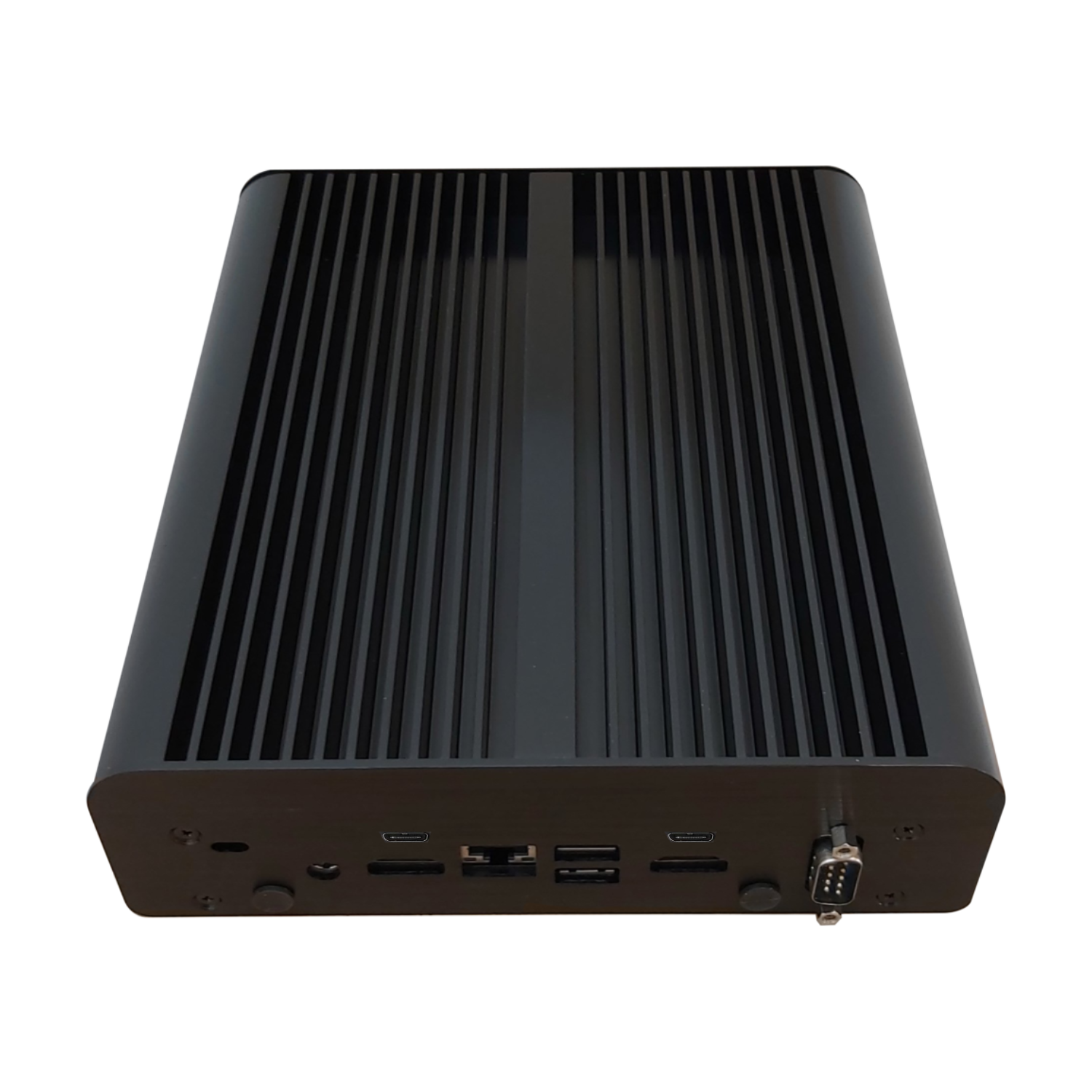

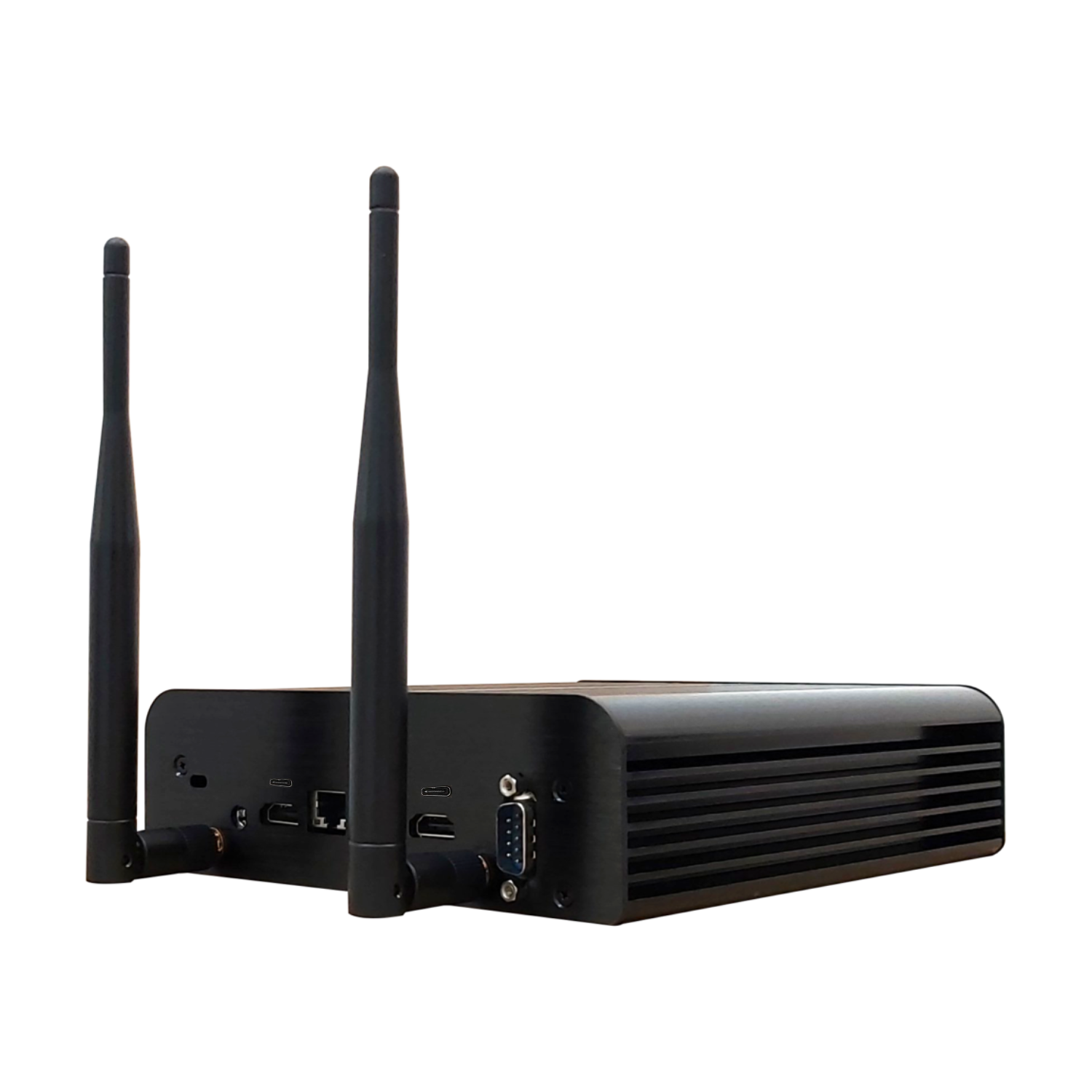

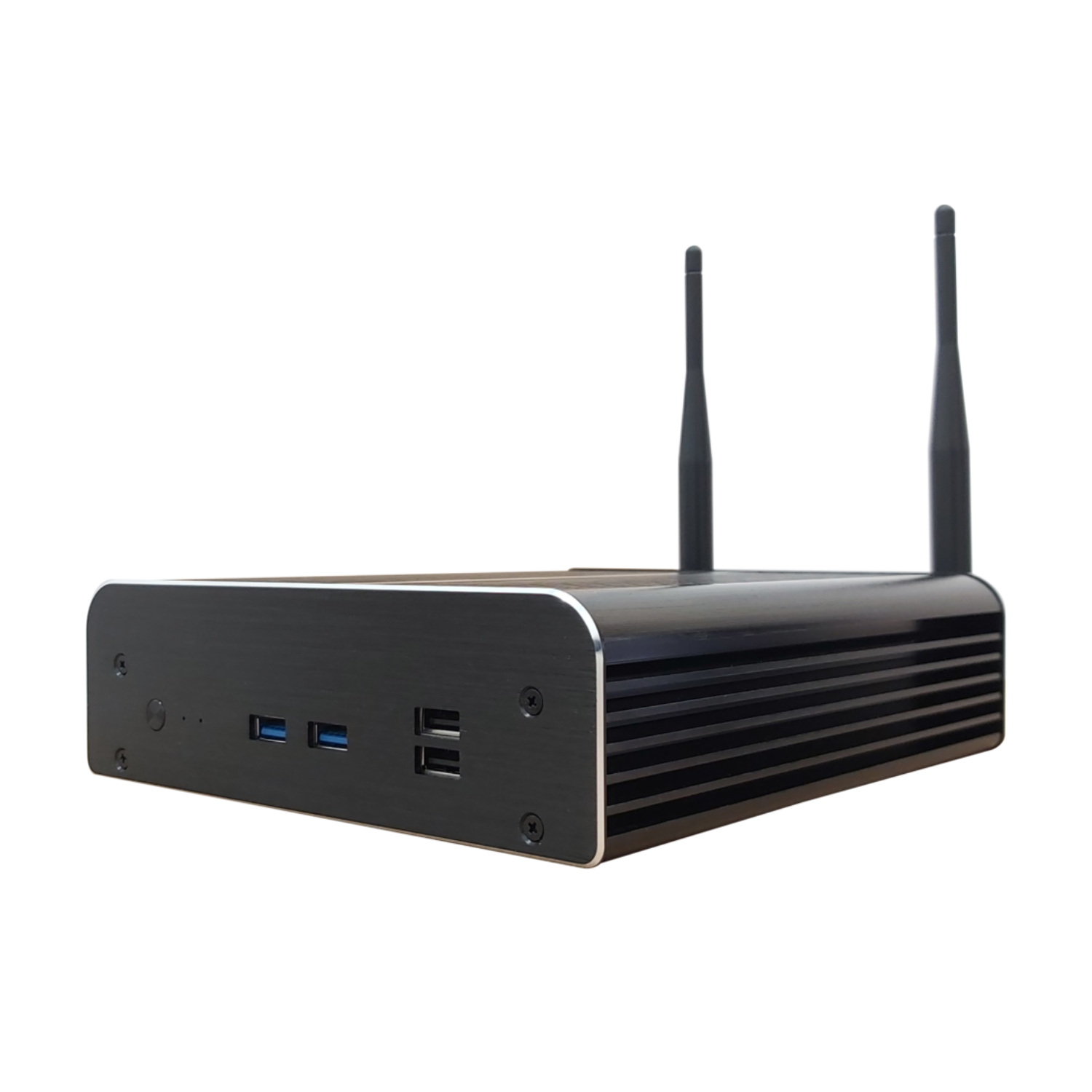

Kimera Serial (Box version): industrial fanless PC, CPU i3 / i5, RS-232

Aluminium fanless design, Dual video out HDMI, 1x RS232

Cod.:RSC-7
Video product
Request info
Technical sheet
CPU

Intel Core i3-7100U, 2x 2.40GHz, 3MB Cache
Intel Core i5-7300U, 2x 3.50GHz, 3MB Cache

Memory Ram

2 x DDR4 SO-DIMM up to 32 GB, 2133 MHz, dual-channel

Storage

2.5″ HDD/SSD + M.2 SATA/PCIe SSD (RAID-0 RAID-1)

Lan

Intel® 10/100/1000 Mbps Ethernet

WiFi

Optional

Graphics

Intel® HD Graphics, Resolution 4096×2304, Support 4K at 60Hz
Support DirectX 12 and OpenGL

External connectors

Front:
2x USB 3.0
2x USB 2.0

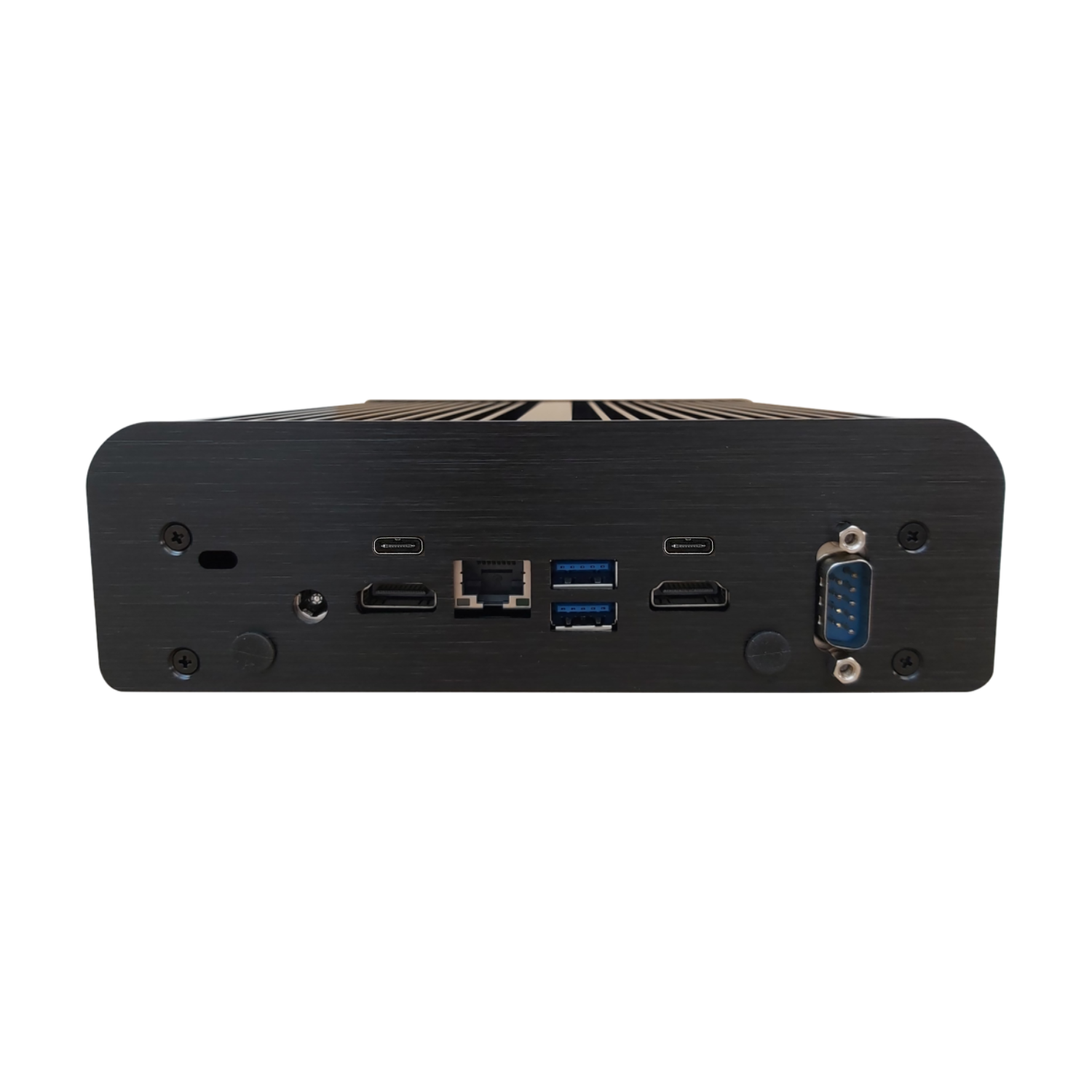

Rear:
2x HDMI 2.0
2x USB 3.0
1x Gb LAN
1x Serial

Power

19V 65W DC-In

Dimensions

176,6 x 200 x 53,6 mm
